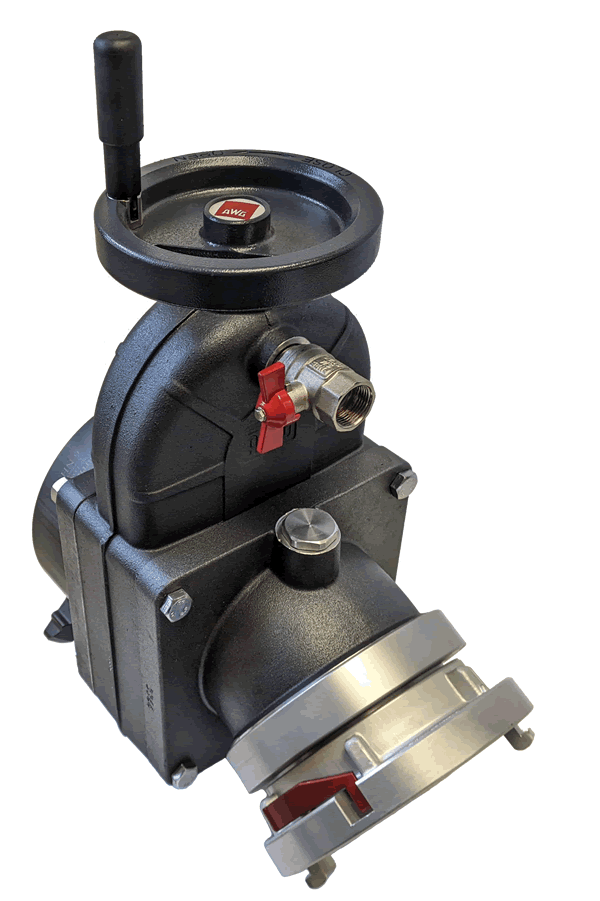

Super Flow 6” Gate Valves
This LDH gate valve has our largest water way which provides low friction loss due to a high flow design.
The light weight gate valve is available in three configurations, Straight, 30’ elbow or elbow with relief valve,
all models include a 3/4” air bleeder valve, a non-rising stem, an anodized gate, and a stainless steel spindle.
Choose from a variety of sizes of Storz, NST or Flange connections. Friction loss at 1000 GPM-0.1 psi.
Dimensions:
H: 16” L: 10” W: 8.5” Weight: 30 lbs
Note: the H800 Series is available with a flange on the intake. Please contact us directly for pricing information.
PRINT a product spec sheet
Add a screen:
HSAS-40 Stainless Steel Screen for 4” Storz $65.00
HSAS-50 Stainless Steel Screen for 5” Storz $70.00
HSAS-60 Stainless Steel Screen for 6” Storz $80.00
Description
Note: These valves are also available with Flange connections, call or e-mail specific information: Size of flange and if need flat face or raised face flange
| Part Number | Description | List |
| H861-45NHM-45NH | 6" Gate valve superflow w/ 25° elbow 4.5” NH male x 4.5” NH female swivel rocker lug | $5,260.00 |
| H861-45NHM-45NHLH | 6" Gate valve superflow w/ 25° elbow 4.5” NH male x 4.5” NH female swivel long handle | $5,260.00 |
| H861-50-45NH | 6" Gate valve superflow w/ 25° elbow 5” Storz lock x 4.5” NH female swivel rocker lug | $5,305.00 |
| H861-50-50NH | 6" Gate valve superflow w/ 25° elbow 5” Storz lock x 5” NH female swivel rocker lug | $5,140.00 |
| H861-50-50NHLH | 6" Gate valve superflow w/ 25° elbow 5” Storz lock x 5” NH female swivel long handle | $5,140.00 |
| H861-50-60NH | 6" Gate valve superflow w/ 25° elbow 5” Storz lock x 6” NH female swivel rocker lug | $6,540.00 |
| H861-50-60NH/Cap | 6" Gate valve superflow w/ 25° elbow 5” Storz lock x 6” NH female swivel rocker lug with Cap | $6,735.00 |
| H861-60-50NH | 6" Gate valve superflow w/ 25° elbow 6” Storz lock x 5” NH female swivel rocker lug | $5,020.00 |
| H861-60-50NHLH | 6" Gate valve superflow w/ 25° elbow 6” Storz lock x 5” NH female swivel long handle | $5,020.00 |
| H861-60-60NH | 6" Gate valve superflow w/ 25° elbow 6” Storz lock x 6” NH female swivel rocker lug | $5,020.00 |
| H861-60-60NH/Cap | 6" Gate valve superflow w/ 25° elbow 6” Storz lock x 6” NH female swivel rocker lug with Cap | $5,310.00 |
| H861-60-60NPSH | 6" Gate valve superflow w/ 25° elbow 6” Storz lock x 6” NPSH female swivel rocker lug | $5,035.00 |
| H861-60NHM-60NH | 6" Gate valve superflow w/ 25° elbow 6” NH male x 6” NH female swivel rocker lug | $6,270.00 |
| H861-60NHM-60NHLH | 6" Gate valve superflow w/ 25° elbow 6” NH male x 6” NH female swivel long handle | $6,270.00 |
| H861-60NHM-60NPSH | 6" Gate valve superflow w/ 25° elbow 6” NH male x 6” NPSH female swivel rocker lug | 6,270.00 |
| H861-60NHM-60NPSHLH | 6" Gate valve superflow w/ 25° elbow 6” NH male x 6” NPSH female swivel long handle | 6,270.00 |
| Available Storz Caps | ||
| HBC-40 | 4″ Storz Blind Cap | $188.00 |
| HBC-50 | 5″ Storz Blind Cap | $244.00 |
| HBC-60 | 6″ Storz Blind Cap | $344.00 |
