H811- 25° Elbow 4” Gate Valves

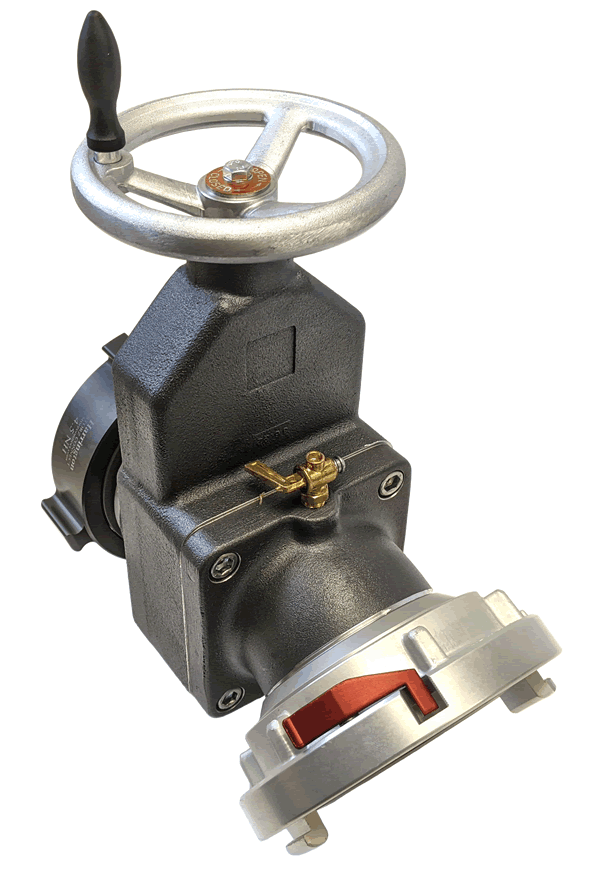

This LDH hydrant gate valve has the following features: slow open/close, a 25 degree elbow, and low friction loss due to a high flow waterway design. The light weight gate valve has a non rising stem, an air bleeder valve, an anodized gate, and a stainless steel spindle. Choose from a variety of sizes of Storz or NST connections.

Friction Loss at 1000 GPM: 0.8 PSI.

Note: the H800 Series is available with a flange on the intake. Please contact us directly for pricing information.

PRINT a Product Manual

Add a screen:
HSAS-40 Stainless Steel Screen for 4” Storz $52.00
HSAS-50 Stainless Steel Screen for 5” Storz $68.00
HSAS-60 Stainless Steel Screen for 6” Storz $72.00

Add a Storz Cap to your order. See pricing below.

Description

Note:  These valves are also available with Flange connections, call or e-mail specific information: Size of flange and if need flat face or raised face flange

Part Number Description Spec Sheet LIST

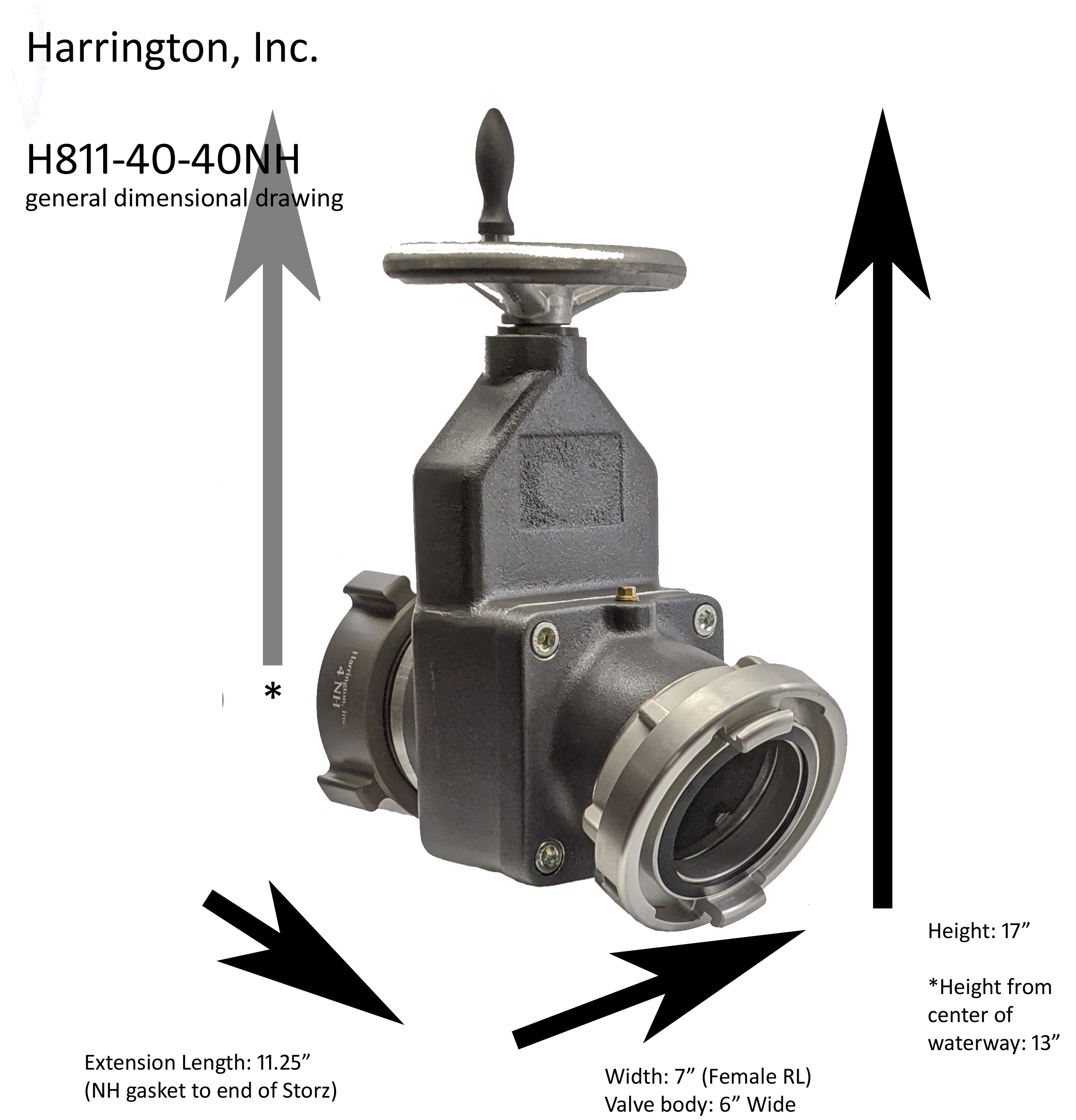

H811-40-40NH Gate valve 4″ w/ 25° elbow 4″ NH female swivel rocker lug inlet x 4″ Storz-Lok outlet $1,660.00
H811-40-40NHLH Gate valve 4″ w/ 25° elbow 4″ NH female swivel long handle inlet x 4″ Storz-Lok outlet $1,667.00
H811-40-40NPSH Gate valve 4″ w/ 25° elbow 4″ NPSH female swivel rocker lug inlet x 4″ Storz-Lok outlet $1,660.00
H811-40-40ST Gate valve 4″ w/ 25° elbow 4″ Storz-Lok inlet x 4″ Storz-Lok outlet $1,821.00
H811-40NHM-40NH Gate valve 4″ w/ 25° elbow 4″ NH female swivel rocker lug inlet x 4″ NH male outlet $1,602.00
H811-40NHM-40NPSH Gate valve 4″ w/ 25° elbow 4″ NPSH female swivel rocker lug inlet x 4″ NH male outlet $1,602.00
H811-40-45NH Gate valve 4″ w/ 25° elbow 4.5″ NH female swivel rocker lug inlet x 4″ Storz-Lok outlet $1,642.00
H811-40-45NHLH Gate valve 4″ w/ 25° elbow 4.5″ NH female swivel long handle inlet x 4″ Storz-Lok outlet $1,652.00
H811-40-50NH Gate valve 4″ w/ 25° elbow 5″ NH female swivel rocker lug inlet x 4″ Storz-Lok outlet $1,714.00
H811-40-50NHLH Gate valve 4″ w/ 25° elbow 5″ NH female swivel long handle inlet x 4″ Storz-Lok outlet $1,714.00
H811-40-50NPSH Gate valve 4″ w/ 25° elbow 5″ NPSH female swivel rocker lug inlet x 4″ Storz-Lok outlet $1,714.00
H811-40-60NH Gate valve 4″ w/ 25° elbow 6″ NH female swivel rocker lug inlet x 4″ Storz-Lok outlet $1,772.00
H811-40-60NHLH Gate valve 4″ w/ 25° elbow 6″ NH female swivel long handle inlet x 4″ Storz-Lok outlet $1,772.00
H811-45NHM-45NH Gate valve 4″ w/ 25° elbow 4.5″ NH female swivel rocker lug inlet x 4.5″ NH male outlet $1,615.00
H811-50-40NH Gate valve 4″ w/ 25° elbow 4″ NH female swivel rocker lug inlet x 5″ Storz-Lok outlet $1,812.00
H811-50-40NHLH Gate valve 4″ w/ 25° elbow 4″ NH female swivel long handle inlet x 5″ Storz-Lok outlet $1,838.00
H811-50-45NH Gate valve 4″ w/ 25° elbow 4.5″ NH female swivel rocker lug inlet x 5″ Storz-Lok outlet $1,790.00
H811-50-45NHLH Gate valve 4″ w/ 25° elbow 4.5″ NH female swivel long handle inlet x 5″ Storz-Lok outlet $1,800.00
H811-50-50NH Gate valve 4″ w/ 25° elbow 5″ NH female swivel rocker lug inlet x 5″ Storz-Lok outlet $1,860.00
H811-50-50NHLH Gate valve 4″ w/ 25° elbow 5″ NH female swivel long handle inlet x 5″ Storz-Lok outlet $1,877.00
H811-50-50NPSH Gate valve 4″ w/ 25° elbow 5″ NPSH female swivel rocker lug inlet x 5″ Storz-Lok outlet $1,860.00
H811-50-50NPSHLH Gate valve 4” w/ 25° elbow 5” NH female swivel long handle inlet x 5” Storz-Lok outlet $1,877.00
H811-50-50ST Gate valve 4″ w/ 25° elbow 5″ Storz-Lok inlet x 5″ Storz-Lok outlet $1,853.00
H811-50NHM-50NH Gate valve 4″ w/ 25° elbow 5″ NH female swivel rocker lug inlet x 5″ NH male outlet $1,699.00
H811-50-60NH Gate valve 4″ w/ 25° elbow 6″ NH female swivel rocker lug inlet x 5″ Storz-Lok outlet DOWNLOAD $1,920.00
H811-50-60NHLH Gate valve 4” w/ 25° elbow 6” NH female swivel long handle inlet x 5” Storz-Lok outlet $1,920.00
H811-50-60NPSH Gate valve 4″ w/ 25° elbow 6″ NPSH female swivel rocker lug inlet x 5″ Storz-Lok outlet $1,920.00
H811-50-60NPSHLH Gate valve 4” w/ 25° elbow 6” NH female swivel long handle inlet x 5” Storz-Lok outlet $1,920.00
H811-60NHM-60NH Gate valve 4″ w/ 25° elbow 6″ NH female swivel rocker lug inlet x 6″ NH male outlet $1,849.00
Available Storz Caps
HBC-40 4″ Blind Cap $146.00
HBC-50 5″ Blind Cap $169.00
