Flange NH FEMALE SWIVEL Adapters: STRAIGHT
USA

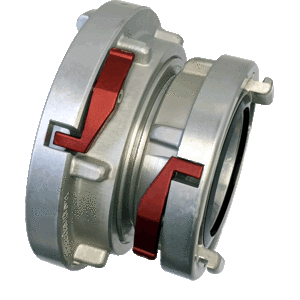

Flange NH Female Swivel Adapters

** New Flange Coating Process **

Harrington Inc, Flange adapters are available in straight and 30 degree elbow NH Male & Female fittings. All adapters are hard coat anodized for corrosion resistance. Carbon steel flange is stripped and cleaned of any manufacturing oils or dirt providing a good base for primer adhesion. A Zinc rich primer coat is applied that seals the entire carbon steel flange. A powder coat finish is then applied to the flange – red or black The primer and top coat include the entire flange and is applied red flange to storz after threads have been cut. These adapters are available with Flat Face or Raised Face Flanges ideal for use in Fixed facilities, pump connections, or other permanent mounting for years of continued service.

Description



Not seeing the size or product that you need? Give us a call, custom sizes are
available.
Part Number Flange Description LIST Specs
HFL-FF-40-45NHFS 4″ Flat Face 150# Flange Carbon Steel Flange x Anodized Aluminum 4.5″ NH Female Swivel Rocker Lug Call
HFL-FF-60-45NHFS 6″ Flat Face 150# Flange Carbon Steel Flange x Anodized Aluminum 4.5″ NH Female Swivel Rocker Lug Call
HFL-FF-60-60NHFS 6″ Flat Face 150# Flange Carbon Steel Flange x Anodized Aluminum 6″ NH Female Swivel Rocker Lug Call
HFL-RF-40-45NHFS 4″ Raised Face 150# Flange Carbon Steel Flange x Anodized Aluminum 4.5″ NH Female Swivel Rocker Lug Call
HFL-RF-60-45NHFS 6″ Raised Face 150# Flange Carbon Steel Flange x Anodized Aluminum 4.5″ NH Female Swivel Rocker Lug Call
HFL-RF-60-60NHFS 6″ Raised Face 150# Flange Carbon Steel Flange x Anodized Aluminum 6″ NH Female Swivel Rocker Lug Call
