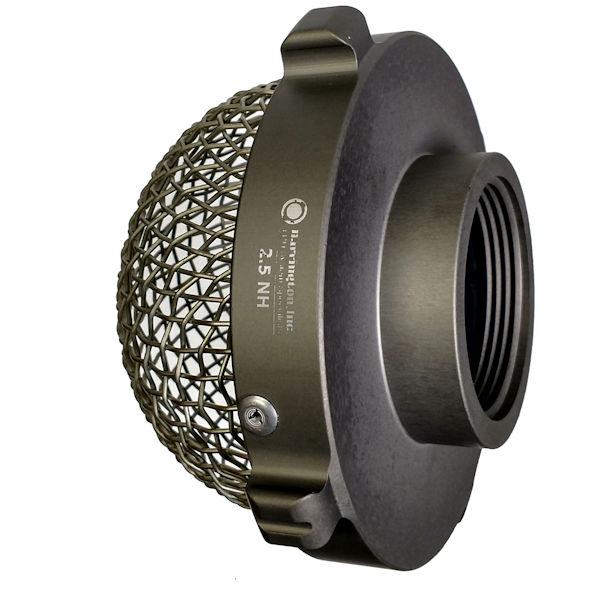

Basket Suction Strainer/Diffuser
USA

Lightweight T6061-T6 aluminum body anodized to Military specification Type 3 for durability with rigid stainless steel mesh screen. Basket strainers provide the best performance when drafting, while reducing debris from entering a pump and provides full flow into the suction hose. This same device can be used to diffuse water when testing hydrants to diffuse the flow safely.

Notes:

  • Available in female sizes 2.5” through 6”
  • NH, NST, or NPSH threads standard
  • Rocker lug for easy secure tightening
  • Includes flat face gasket

When ordering specify quantity, size, and thread type.

Weights and Dimensions:

Size OAL Weight Dia.
2.5″ 5-5/16″ 2.9 6-7/8″
3″ 5-7/16″ 3.1 6-7/8″
3.5″ 5-7/16″ 3.2 6-7/8″
4″ 5-9/16″ 3.3 6-7/8″
4.5″ 5-9/16″ 3.4 6-7/8″
5″ 5-11/16″ 3.5 6-7/8″
6″ 7-15/16″ 4.8 8″
Weight is rounded to nearest 1/10th of a lb.
Categories: , , ,

Description

[custom_table]

Part Number Description LIST
HWMBS-25NH 2.5” Female Rigid Basket Suction Strainer-Diffuser $217.00
HWMBS-30NH 3” Female Rigid Basket Suction Strainer-Diffuser $225.00
HWMBS-35NH 3.5” Female Rigid Basket Suction Strainer-Diffuser $234.00
HWMBS-40NH 4” Female Rigid Basket Suction Strainer-Diffuser $258.00
HWMBS-45NH 4.5” Female Rigid Basket Suction Strainer-Diffuser $267.00
HWMBS-50NH 5” Female Rigid Basket Suction Strainer-Diffuser $319.00
HWMBS-60NH 6” Female Rigid Basket Suction Strainer-Diffuser $351.00

DOWNLOAD a diffuser product bulletin

[/custom_table]
