5-Way Manifolds

Distributor Ball Valves

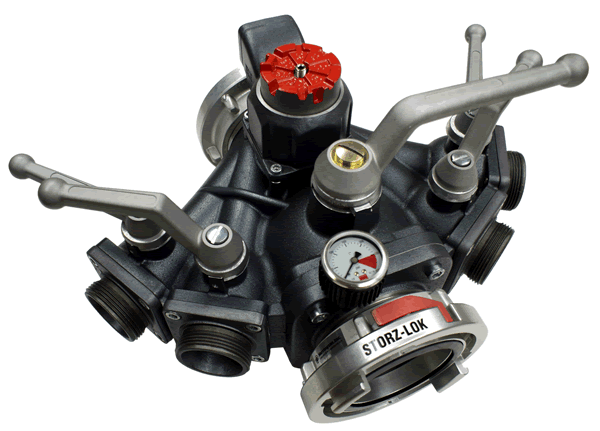

Light weight, 5 way LDH manifold, feeds four smaller lines from one LDH line and also has one straight through LDH outlet. The balls are hard anodized with stainless steel tappets for corrosion resistance. The manifold has an adjustable pressure relief valve and a liquid filled pressure gauge. Specify the size of Storz or NST connections.

Dimensions: L: 17” W: 24” H: 13”
Weight: 51 lbs

Download a product data sheet

Download a Product Manual

Description

Part Number Description LIST
H400-40-40-25BIF 5-way Manifold 4” Storz lock inlet x (1) 4” Storz lock outlet x (4) 2.5” BI female outlets w/ 250-S RV (LDH Manifold) $3,133.00
H400-40-40-25BIM 5-way Manifold 4” Storz lock inlet x (1) 4” Storz lock outlet x (4) 2.5” BI male outlets
w/ 250-S RV (LDH Manifold)
$2,908.00
H400-40-40-25NH 5-way Manifold 4” Storz lock inlet x (1) 4” Storz lock outlet (4) 2.5” NH male outlets
w/ 250-S RV (LDH Manifold)
$2,793.00
H400-40-40-25NHFS 5-way Manifold 4” Storz lock inlet x (1) 4” Storz lock outlet (4) 2.5” NH female swivel
outlets w/ 250-S RV (LDH Manifold)
$3,060.00
H400-40-40-25QST 5-way Manifold 4” Storz lock inlet x (1) 4” Storz lock outlet (4) 2.5” QST male outlets
w/ 250-S RV (LDH Manifold)
$2,793.00
H400-40-40-25QSTFS 5-way Manifold 4” Storz lock inlet x (1) 4” Storz lock outlet (4) 2.5” QST female
swivel outlets w/ 250-S RV (LDH Manifold)
$3,060.00
H400-40NH-40NH-
25NH
5-way Manifold 4” NH female swivel inlet x (1) 4” NH male outlet (4) 2.5” NH male
outlets w/ 250-S RV (LDH Manifold)
$2,796.00
H400-45NH-45NH-
25NH
5-way Manifold 4.5” NH female swivel inlet x (1) 4.5” NH male outlet (4) 2.5” NH
male outlets w/ 250-S RV (LDH Manifold)
$2,898.00
H400-50-40-25NH 5-way Manifold 5” Storz lock inlet x (1) 4” Storz lock outlet (4) 2.5” NH male outlets
w/ 250-S RV (LDH Manifold)
$2,744.00
H400-50-40-25NHFS 5-way Manifold 5” Storz lock inlet x (1) 4” Storz lock outlet (4) 2.5” NH female swivel
outlets w/ 250-S RV (LDH Manifold)
$3,008.00
H400-50-40-25QST 5-way Manifold 5” Storz lock inlet x (1) 4” Storz lock outlet (4) 2.5” QST male outlets
w/ 250-S RV (LDH Manifold)
$2,744.00
H400-50-40-25QSTFS 5-way Manifold 5” Storz lock inlet x (1) 4” Storz lock outlet (4) 2.5” QST female
swivel outlets w/ 250-S RV (LDH Manifold)
$3,008.00
H400-50-50-25BIF 5-way Manifold 5” Storz lock inlet x (1) 5” Storz lock outlet x (4) 2.5” BI female
outlets w/ 250-S RV (LDH Manifold)
$3,196.00
H400-50-50-25BIM 5-way Manifold 5” Storz lock inlet x (1) 5” Storz lock outlet x (4) 2.5” BI male outlets
w/ 250-S RV (LDH Manifold)
$2,953.00
H400-50-50-25NH 5-way Manifold 5” Storz lock inlet x (1) 5” Storz lock outlet (4) 2.5” NH male outlets
w/ 250-S RV (LDH Manifold)
$2,838.00
H400-50-50-25NH/FTS 5-way Manifold 5” Storz lock full time swivel inlet x (1) 5” Storz lock outlet (4) 2.5”
NH male outlets w/ 250-S RV (LDH Manifold)
$3,106.00
H400-50-50-25NHFS 5-way Manifold 5” Storz lock inlet x (1) 5” Storz lock outlet (4) 2.5” NH female swivel
outlets w/ 250-S RV (LDH Manifold)
$3,100.00
H400-50-50-25NPSH 5-way Manifold 5” Storz lock inlet x (1) 5” Storz lock outlet (4) 2.5” NPSH male
outlets w/ 250-S RV (LDH Manifold)
$2,838.00
H400-50-50-25QST 5-way Manifold 5” Storz lock inlet x (1) 5” Storz lock outlet (4) 2.5” QST male outlets
w/ 250-S RV (LDH Manifold)
$2,838.00
H400-50-50-25QST/
FTS
5-way Manifold 5” Storz lock full time swivel inlet x (1) 5” Storz lock outlet (4) 2.5”
QST male outlets w/ 250-S RV (LDH Manifold)
$3,106.00
H400-50-50-25QSTFS 5-way Manifold 5” Storz lock inlet x (1) 5” Storz lock outlet (4) 2.5” QST female
swivel outlets w/ 250-S RV (LDH Manifold)
$3,100.00
H400-50-50-25ST 5-way Manifold 5” Storz lock inlet x (1) 5” Storz lock outlet (4) 2.5” Storz outlets w/
250-S RV (LDH Manifold)
$3,004.00
H400-50-50-30ST 5-way Manifold 5” Storz lock inlet x (1) 5” Storz lock outlet (4) 3” Storz outlets w/
250-S RV (LDH Manifold)
$3,004.00
H400-60-25NHM 5-way Manifold 6” Storz lock inlet x (5) 2.5” NH male outlets w/ 250-S RV (LDH
Manifold)
$2,958.00
H400-60-25ST 5-way Manifold 6” Storz lock inlet x (5) 2.5” Storz outlets w/ 250-S RV (LDH
Manifold)
$3,065.00
H400-60-30ST 5-way Manifold 6” Storz lock inlet x (5) 3” Storz outlets w/ 250-S RV (LDH Manifold) $3,065.00
H400-60-60-25BIF 5-way Manifold 6” Storz lock inlet x (1) 6” Storz lock outlet x (4) 2.5” BI female
outlets w/ 250-S RV (LDH Manifold)
$3,470.00
H400-60-60-25BIM 5-way Manifold 6” Storz lock inlet x (1) 6” Storz lock outlet x (4) 2.5” BI male outlets
w/ 250-S RV (LDH Manifold)
$3,284.00
H400-60-60-25NH 5-way Manifold 6” Storz lock inlet x (1) 6” Storz lock outlet x (4) 2.5” NH male outlets
w/ 250-S RV (LDH Manifold)
$3,113.00
H400-60-60-25NPSH 5-way Manifold 6” Storz lock inlet x (1) 6” Storz lock outlet x (4) 2.5” NPSH male
outlets w/ 250-S RV (LDH Manifold)
$3,113.00
H400-60-60-25ST 5-way Manifold 6” Storz lock inlet x (1) 6” Storz lock outlet x (4) 2.5” Storz outlets w/
250-S RV (LDH Manifold)
$3,293.00
H400-60-60-30ST 5-way Manifold 6” Storz lock inlet x (1) 6” Storz lock outlet x (4) 3” Storz outlets w/
250-S RV (LDH Manifold)
$3,293.00
HPG-100-H Harrington 0-300 Glycerine Filled Pressure Gauge $62.00
HMB-M Mounting bracket for the H301 and H400 Manifolds $407.00
HPM-M Post Mount Bracket for H301 and H400 Manifolds $320.00

FTS- Full Time Swivel
