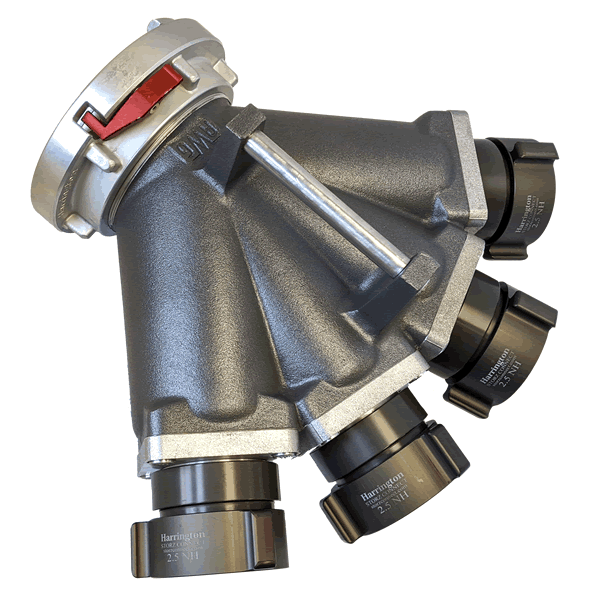

H440- 4-Way Siamese

Siamese Valves

Light weight anodized corrosion resistance all metal construction the 4 way Clappered Siamese is used for supplying one LDH line from up to four smaller lines. Each inlet is Clappered individually and can be fed individually or from all four smaller lines. Features stainless steel clapper assemblies “forged” Storz heads, and stainless steel balls in swivel races.

Includes a carrying handle. Specify the size of Storz or NST connections.

Dimensions: Length: 15” Width: 19” Height: 9”
Weight: 15 lbs

Download a Product Manual

Description

Part Number Description List
H440-40-25BIM 4-way siamese clappered (4) 2.5” BI male inlet x 4” Storz lock outlet $1,446.00
H440-40-25NH 4-way siamese clappered (4) 2.5″ NH female swivel rocker lug inlet x 4″ Storz lock outlet $1,446.00
H440-40-25QST 4-way siamese clappered (4) 2.5” QST female swivel rocker lug inlet x 4” Storz lock outlet $1,300.00
H440-40-25ST 4-way siamese clappered (4) 2.5” Storz inlet x 4” Storz lock outlet $1,356.00
H440-40-30ST 4-way siamese clappered (4) 3” Storz inlet x 4” Storz lock outlet $1,356.00
H440-45-25ST 4-way siamese clappered (4) 2.5” Storz inlet x Storz 110 lock outlet $1,440.00
H440-45-30ST 4-way siamese clappered (4) 3” Storz inlet x Storz 110 lock outlet $1,440.00
H440-50-25BIM 4-way siamese clappered (4) 2.5” BI male inlet x 5” Storz lock outlet $1,251.00
H440-50-25NH 4-way siamese clappered (4) 2.5″ NH female swivel rocker lug inlet x 5″ Storz lock outlet $1,389.00
H440-50-25NPSH 4-way siamese clappered (4) 2.5” NPSH female swivel rocker lug inlet x 5” Storz lock outlet $1,389.00
H440-50-25QST 4-way siamese clappered (4) 2.5” QST female swivel rocker lug inlet x 5” Storz lock outlet $1,389.00
H440-50-25ST 4-way siamese clappered (4) 2.5” Storz inlet x 5” Storz lock outlet $1,251.00
H440-50-30ST 4-way siamese clappered (4) 3” Storz inlet x 5” Storz lock outlet $1,251.00
H440-60-25BIM 4-way siamese clappered (4) 2.5” BI male inlet x 6” Storz lock outlet $1,426.00
H440-60-25NH 4-way siamese clappered (4) 2.5″ NH female swivel rocker lug inlet x 6″ Storz lock outlet $1,578.00
H440-60-25ST 4-way siamese clappered (4) 2.5” Storz inlet x 6” Storz lock outlet $1,426.00
H440-60-30ST 4-way siamese clappered (4) 3” Storz inlet x 6” Storz lock outlet $1,426.00
H440-60NHFS-25BIM 4-way siamese clappered (4) 2.5” BI male inlet x 6” NH female swivel outlet $1,433.00
H440-60NHFS-
25NHFS
4-way siamese clappered (4) 2.5” NH female swivel inlet x 6” NH female swilvel outlet $1,508.00
