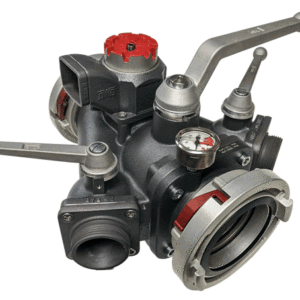

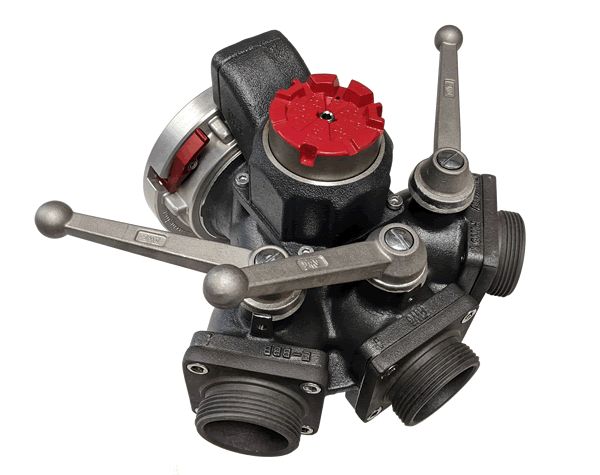

3-Way Ball Valve (Wye)

Mid-size, light weight 3 way LDH ball valve feeds three smaller lines from one LDH line or feed one LDH line from up to three smaller lines. The balls are hard anodized with stainless steel tappets for corrosion resistance. Valve includes a field adjustable pressure relief valve. Specify the size of Storz or NST connections.

Dimensions: L: 13.5” W: 13” H: 11”

Weight: 12 lbs

Description

Part Number Inlet Threaded Outlet LIST
H300-40-25NH 4” Storz (3) 2½” NH Male $1,506.00
H300-50-25NH 5” Storz (3) 2½” NH Male $1,454.00
H300-60-25NH 6” Storz (3) 2½” NH Male $1,888.00
H300-40-25NHFS 4” Storz (3) 2½” NH Fem. Swivel $1,680.00
H300-50-25NHFS 5” Storz (3) 2½” NH Fem. Swivel $1,724.00
H300-50-25NH/FTS 5” Storz FTS (3) 2.5” NH male $1,724.00
H300-60-25NHFS 6” Storz (3) 2½” NH Fem. Swivel $2044.00

FTS- Full Time Swivel

DOWNLOAD a product data sheet
